1296MHz Amplifiers

150W Cavity for 23cm, ready to use

Cavity P.A. 150W @ 1296MHz

  • Cavity P.A. is tunable to 1269MHz for satellite uplink and ATV use as well !
  • Cavity suitable for 2x 2C39BA
  • Complete made of brass
  • Easily tuning for max output.
  • Load and plate tuneable for max output.
  • Max. High voltage is 1500V - DC.
  • Only a blower, high-voltage power supply, 2 x 2C39BA tubes and a bias circuit is requierd.
  • More parts available
  • (Teflon, Fingerstock etc.)
  • Note: Dual cavity temporary sold out !
  • Download price list page

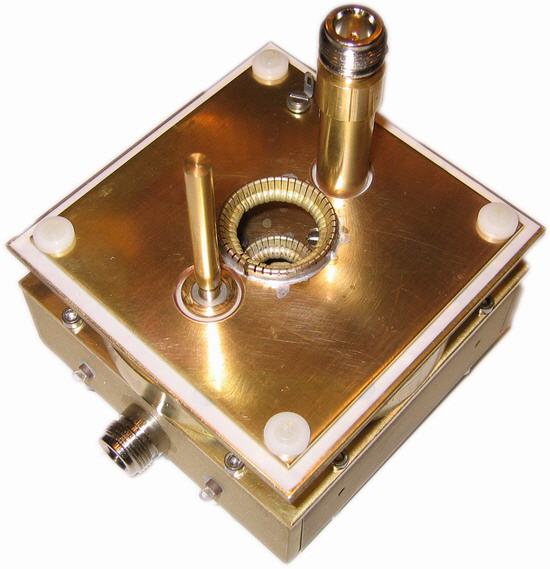

75W Cavity for 23cm, ready to use

Cavity P.A. 75W @ 1296MHz

  • Cavity P.A. is tunable to 1269MHz for satellite uplink and ATV use as well !
  • Cavity suitable for 2C39BA
  • Complete made of brass
  • Easily tuning for max output.
  • Load and plate tuneable for max output.
  • Max. High voltage is 1500V - DC.
  • Only a blower, high-voltage power supply, 2C39BA tubes and a bias circuit is requierd.
  • More parts available
  • (Teflon, Fingerstock etc.)
  • We will be glad to E-mail you a quotation, or use the Quote request page
  • Download price list page
Specification 1x 2C39BA Valve P.A. Specification 2x 2C39 Valve P.A.
Gain: 13 dB Gain: 12 dB
Input power: 4...6 Watts Input power: 10 Watts
Output power: 75..90 Watts SSB (ATV: 40...50W) Output power: 150 Watts SSB (ATV: 80W)
Size: 10 x 10 x 12 cm (incl. N.conn) Size: 10 x 10 x 12 cm (incl. N.conn)
Max high voltage DC: 1500 V - DC Max high voltage DC: 1500 V - DC
Current approx: 200 mA Current approx: 350 mA
Connector in and out: N-Female Connector in and out: N-Female
