LHCP / RHCP Dish Feed

LHCP Helix DISH Feed
LHCP Helix DISH Feed

LHCP HELIX dish feed, tuneable between 1.4 - 1.8 GHz (100 MHz Bandwidth)
Left Hand Circular Polarization
(Other frequency and/or RHCP = P/N: LH-23XLR on request)

RF HAMDESIGN Helix Dish feed
RF HAMDESIGN Helix Dish feed Mounted at ofset dish


Specification:
* Connector N-Female
* 50 ohm
* Return loss > 28dB
* Waterproof
* F/D: 0.45 (Prime Focus)
* Dimensions: D=110mm / L=200mm
* Feed clamp available, type CLX1

Note: HELIX Dish feeds are available for other frequency. Mail for info

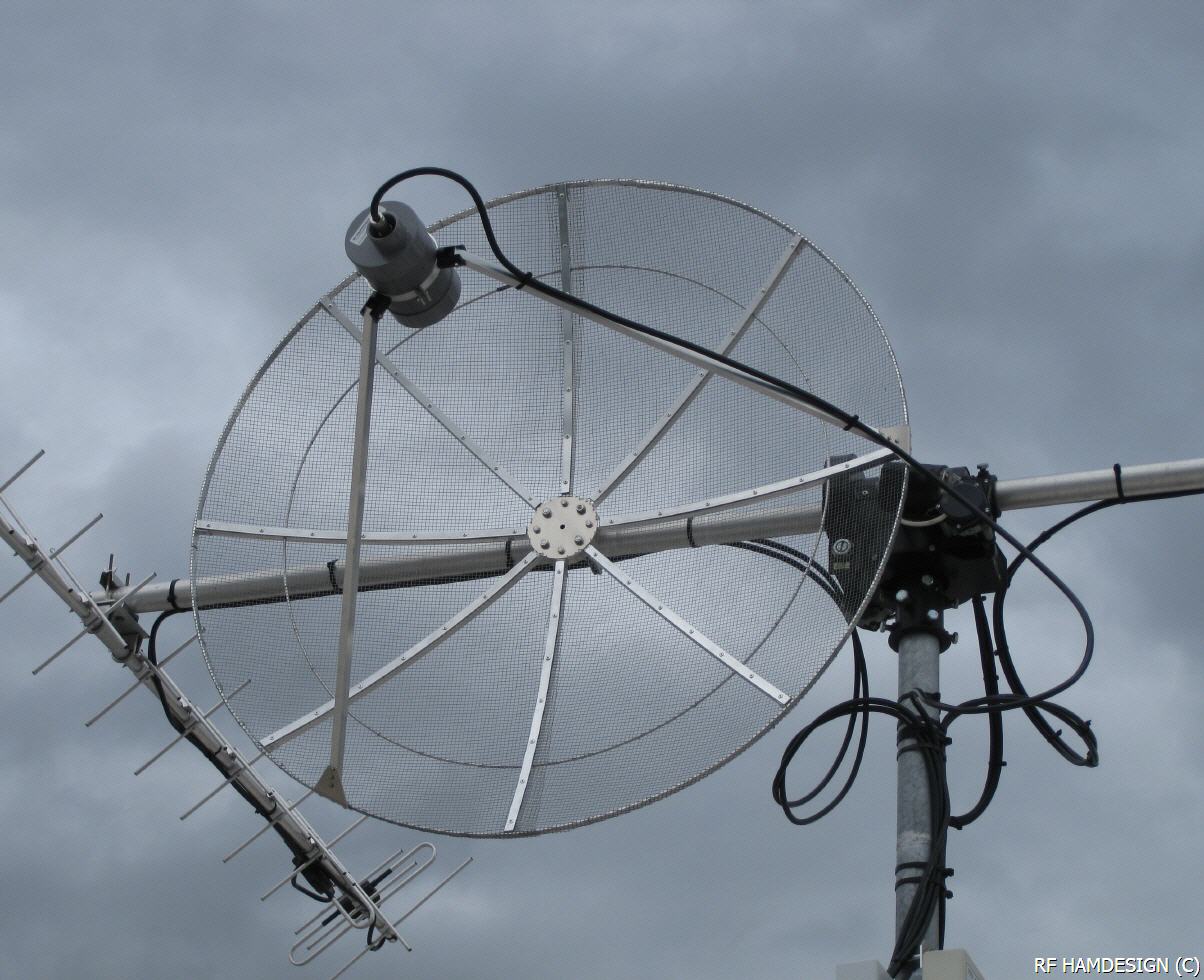

Dish feed mounted in front of 1.2M mesh dish
Dish feed mounted in front of 1.2M mesh dish Antenna rotor SPID RAS

PRICE: EUR. 121,00 (Please specify center frequency)
P/N :
Type LH-23XL

Note: HELIX Dish feeds are available for other frequency. Mail for info


LHCP Helix DISH Feed
LHCP Helix DISH Feed

LHCP HELIX dish feed, tuneable between 2.1 - 2.6 GHz (100 MHz Bandwidth)
Left Hand Circular Polarization
(Other frequency and/or RHCP = P/N: LH-13XLR on request)
on request)

Specification:
* Connector N-Female
* 50 ohm
* Return loss > 28dB
* VSWR: download plot
* Waterproof
* F/D: 0.45 (Prime Focus)
* Dimensions: D=110mm / L=200mm
* Feed clamp available, type CLX1

Switch to the ISS HAM TV Dish Feed

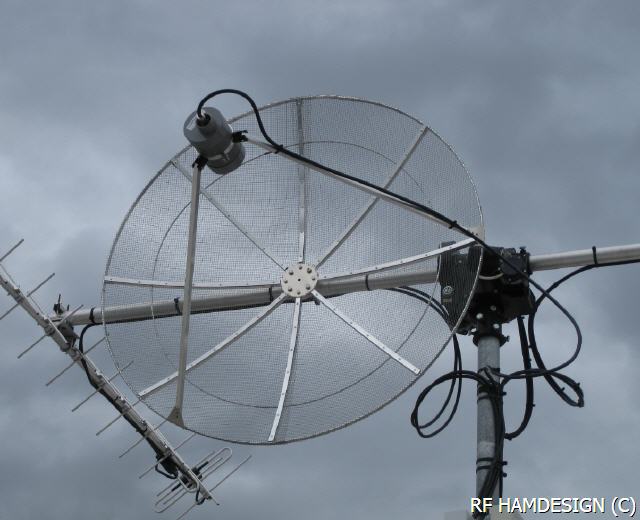

Dish feed mounted in front of 1.2M mesh dish
Dish feed mounted in front of 1.2M mesh dish Antenna rotor SPID RAS

PRICE: EUR. 121,00 (Please specify center frequency)
P/N :
Type LH-13XL

Note: HELIX Dish feeds are available for other frequency. Mail for info

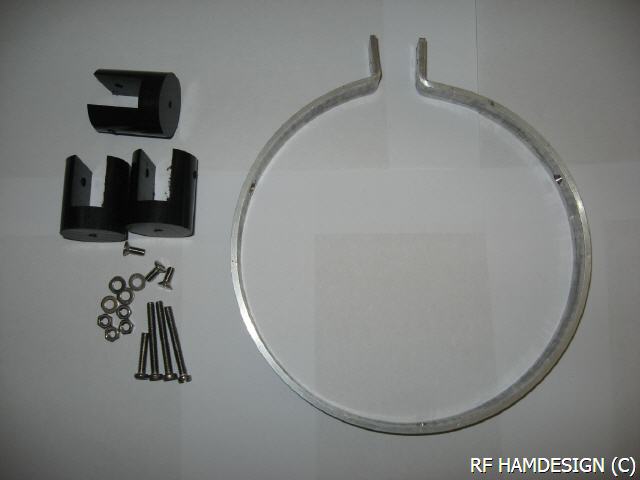

CLX-01 Mounting Bracket 3-leg system
CLX-01 bracket
CLX-01 bracket


Mounting Bracket for LH-xx Dish feed with diamter of 110mm.
This Bracket is used to place the feed in front of the dish by use of a 3-leg dish feed support

Supplied including mounting hardware

CLX-01
CLX-01

Material used:
UV resistant POM (black) and aluminum

Part Number: CLX-01/110
Current Price can be found in the price list
