SPID, type RING ROTOR

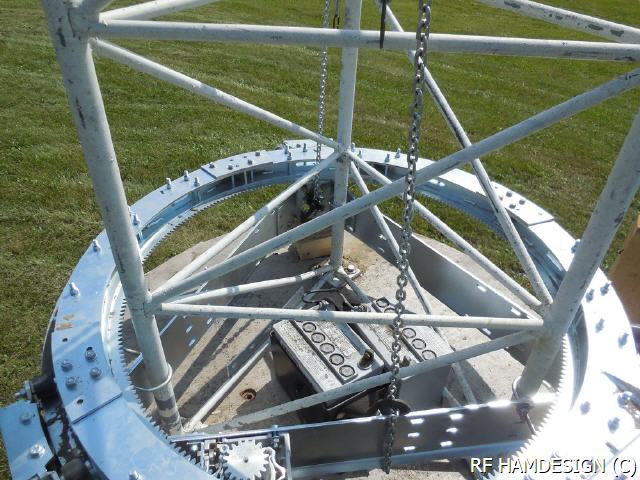

Ring Rotor Mounted

Triangle Tower SPID RING Rotor
This new rotor can be mounted on an equilateral triangle tower

* The New Ring rotor is made of galvanized steel and supplied incl MD-01 or MD-02 or Standard (Rot1Prog) controller.
* Ring rotor is made to rotate large antenna systems around the tower.
* Driven by a 24 Volts DC motor and heavy-duty gear. Rot1Prog system max. 18Volts DC.
* This design allows installation of more than one antenna on each rotor
* Rotor can turn 360 degree, resolution 0,1 degree
* Total weight rotor: +/- 40Kg

* Max load weight antennas to ring rotor: 40Kg

SPID RING Rotator Models:

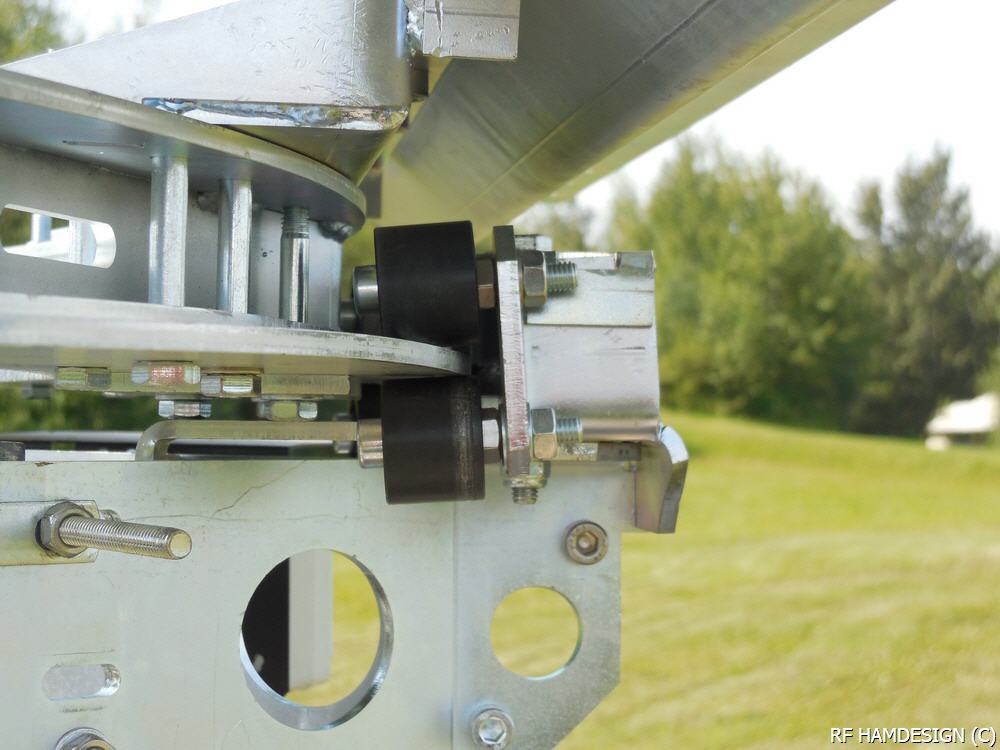

Ring Rotor close-up

2 Model Ring Rotor available:

Type: RING-01/HR: (MD-01 or MD-02 controller)
R
eady to mount at standard triangle tower 16" for example ROHN 45G model [1.400 KB] Tower.
Resolution 0.1 degree / step
* Dimensions RING-01 [95 KB] Rotor

Type: RING-01: (Rot1Prog controller)
R
eady to mount at standard triangle tower 16" for example ROHN 45G model [1.400 KB] Tower.
Resolution 0.5 degree / step
* Dimensions RING-01 [95 KB] Rotor

Type: RING-02/HR: (MD-01 or MD-02 controller)
Ready to mount at duty triangle Tower 17" and 24", for example ROHN 55G [1.648 KB] and ROHN 65G [1.163 KB] model Tower.
Resolution 0.1 degree / step
* Dimensions RING-02 [111 KB] Rotor

Type: RING-02: (Rot1Prog controller)
Ready to mount at duty triangle Tower 17" and 24", for example ROHN 55G [1.648 KB] and ROHN 65G [1.163 KB] model Tower.
Resolution 0.5 degree / step
* Dimensions RING-02 [111 KB] Rotor

PRICE SPID RING ROTOR EURO
Type: RING-01/HR: (MD-01 or MD-02 controller) 1795,00
Type: RING-01: (Rot1Prog controller) 1695,00
Type: RING-02/HR: (MD-01 or MD-02 controller)
1895,00
Type: RING-02: (Rot1Prog controller) 1795,00
RING Rotator /HR needs 4-core (Motor Drive) and 8-core (Positions sensor) control cable Refer Pricelist
RING Rotator Standard needs 4-core control cable. Refer Pricelist
CONTROLLER INFO:.....

MD-02 Controller

All SPID RING Rotators are supplied including controller

Controller Model MD-01 and MD-02 are equal, except housing:...
(Resolution rotor and MD-01 or MD-02 is 0.1 degree)

MD-01 is 19" Rack mount, matching Power supply is PS-01
MD-02 is Desktop model, matching Power supply is PS-02
More info MD-01, More info MD-02

Note: MD-01 / 02 controller can control 2 RING rotators if needed !

Rot1Prog Controller

Controller Model Rot1Prog is our standard controller:.....
(Resolution is 0.5 degree)
More info Rot1Prog

Order & Shipment:....

Shipment is to lot's of countries possible, we will be
glad to
E-mail you a quotation, or use the Quote request page.

All prices are inc. 21% VAT, if your delivery address is outsite the EU countries no V.A.T. applies, and no VAT applies, if you are inside the EU countries and holding a V.A.T. number.
