RF HAMDESIGN - 7/16-Series Directional Couplers

7/16-Series Directional couplers are supplied including a calibrated measurent plot (accuracy +/- 0.15dB)

On request Directional couplers available calibrated at each frequency from 50MHz up to 2.5GHz
You will receive a plot from our Scalar Network Analyzer.
For example: 432MHz measurement plot or 1296MHz plot or complete overview or just as your requested frequency.

High power capable devices.....

RF HAMDESIGN's 7/16-Series Directional Couplers are high power capable devices

7/16-Series directional couplers are broad band and useable from 50MHz up to 2.5GHz, Option: 7/16 DIN male / female

7/16 Directional coupler Female / Female connector
7/16 DIN Female / Female
7/16 DIN Female / Female
  • Frequency range: 50MHz - 2500MHz
  • VSWR Max. 1:1.15
  • Insertion Loss (max) 0,10dB
  • Max. Power 2500 Watts CW
  • Peak power rating 10kW
  • 50 ohm impedance
  • In / Out 7/16-DIN Female
  • Output coupling N-Connector female
  • Directivity Max. 15dB
  • Coupling value nominal ~20.....30dB
  • Delivered inc. measurement plot
  • Material: CNC milled aluminium
  • Dimensions inc connector (mm): 130 x 35 x 55
  • Weight: 460 g
  • P/N: FPR HP7/16
  • PRICE: Refer Price list

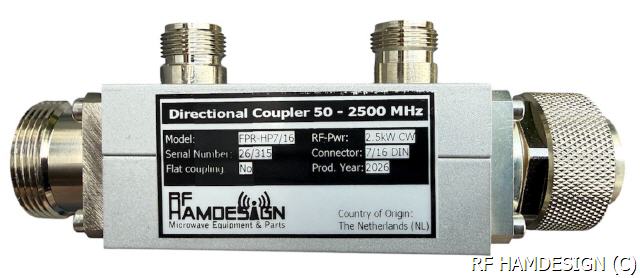

7/16 Directional coupler Female / Male connector
7/16 DIN Male / Female
7/16 DIN Male / Female
  • Frequency range: 50MHz - 2500MHz
  • VSWR Max. 1:1.15
  • Insertion Loss (max) 0,10dB
  • Max. Power 2500 Watts CW
  • Peak power rating 10kW
  • 50 ohm impedance
  • In 7/16-DIN Male / out 7/16-DIN Female
  • Output coupling N-Connector female
  • Directivity Max. 15dB
  • Coupling value nominal ~20....30dB
  • Delivered inc. measurement plot
  • Material: CNC milled aluminium
  • Dimensions inc connector (mm): 130 x 35 x 55
  • Weight: 480 g
  • P/N: FPR HP7/16M
  • PRICE: Refer Price list
