Septum Dish Feed

CIR-902: DUAL MODE LHCP/RHCP CIRCULAR DISH FEED 902MHz
902 MHz Septum Dish Feed (Bracket is optional)
902 MHz Septum Dish Feed (Bracket is optional) Dual Mode: LHCP / RHCP (Circular Polarisation)

CIR-902: Dual Mode Circular Septum (LHCP/RHCP) 902MHz

Specification:

* Connector: RX/TX N-Female
* 50 ohm
* Return loss > 35dB
* Isolation RX/TX port >20dB
* Useable F/D: 0.45 (Prime Focus)
* RF Power: N-connector 1000
* Weight: CIR-902 5.6Kg
* Download specification sheet [685 KB] in PDF

Price: P/N CIR-902 Download actual pricelist
Please specify center frequency when you place your order

Shipment is to lot's of countries possible, we will be
glad to
E-mail you a quotation, or use the Quote request page.

EME Staion 902MHz W6TCP / USA
EME Staion 902MHz W6TCP / USA

902MHz RF HAMDESIGN Septum DIsh feed user Ian / W6TCP

Comment from Ian:
Well I finally got the RF Hamdesign 902MHz Septum feed in and it's working really well.
I hear my own echos through EME all the time.
Some pictures from Ian
here link and left
(EME is Earth Moon Earth / Moon is used as reflector)

Thank you again Frank...
Regards,
Ian W6TCP / USA

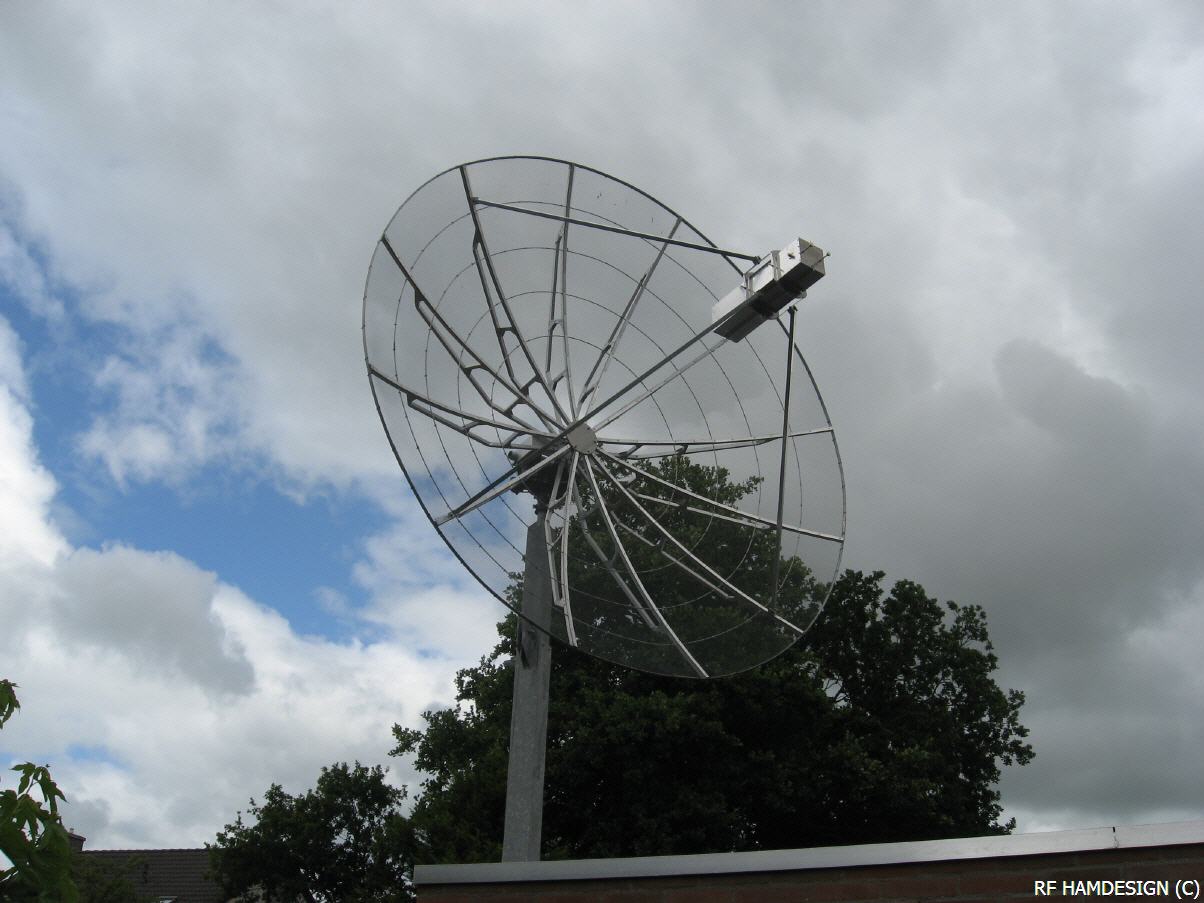

HAM Radio station W6TCP Setup:
RF HAMDESIGN 3M0 Dish KIT + 902MHz Septum dish feed and bracket + BIG-RAS/HR rotor system + UA-02 Bracket

CLX-902 Dish feed bracket for use with CIR-902
CLX-902 Bracket
CLX-902 Bracket

CLX-902 Mounting Bracket.

Perfect solution to mount CIR-902 in front of our RF HAMDESIGN dishes
Bracket needs a 4-leg dish feed support 20mm sq.

CNC milled Alumimum ready to mount.
Weight CLX-902 : 2.1Kg

Price P/N: CLX-902 Download actual pricelist

Shipment is to lot's of countries possible, we will be
glad to
E-mail you a quotation, or use the Quote request page.

CIR-1296: DUAL MODE LHCP/RHCP CIRCULAR DISH FEED 1296MHz (23cm Septum Dish Feed)
1296MHz Septum Dish Feed
1296MHz Septum Dish Feed Dual Mode: LHCP / RHCP (Circular Polarisation)

CIR-1296: Dual Mode Circular Septum (LHCP/RHCP) dish feed 1296-1300MHz

Specification:

* Connector: RX/TX N-Female (Option CIR1296 TX 7/16 DIN)
* 50 ohm
* Return loss > 35dB @ 1296MHz
* Isolation RX/TX port >20dB
* Useable F/D: 0.40 - 0.45 (Prime Focus)
* RF Power: N-connector 750W (option: 7/16DIN 1500Watts)
* Weight: CIR1296: 2.9 Kg
* Download specification sheet [685 KB] in PDF

The latest IARU presentation update is that the GALILEO signal occupies 1258.29 to 1299.21 MHz.
Is it likely that EME activity would move to 1299.400-1299.500MHz
And terrestial narrowband QRO to 1299.500-1300
To be continued.

Price: P/N CIR-1296 Download actual pricelist
Please specify center frequency when you place your order

Shipment is to lot's of countries possible, we will be
glad to
E-mail you a quotation, or use the Quote request page.

CLX-05 Dish feed bracket for use with CIR-1296
CLX-05 Bracket
CLX-05 Bracket

CLX-05 Mounting Bracket.

Perfect solution to mount CIR-1296 in front of our RF HAMDESIGN dishes
Bracket needs a 4-leg dish feed support

CNC milled Alumimum ready to mount.
Total weight : 1.4Kg

Price P/N: CLX-05 Download actual pricelist

Shipment is to lot's of countries possible, we will be
glad to
E-mail you a quotation, or use the Quote request page.

CIR-1700 DUAL MODE CIRCULAR DISH FEED 1650 - 1750 MHz
CIR-1700 / Dual Mode Dish feed (RHCP + LHCP port
CIR-1700 / Dual Mode Dish feed (RHCP + LHCP port

CIR-1700: Dual Mode Circular Septum (LHCP/RHCP) dish feed 1650 - 1750 MHz
Tuneable between: 1.65GHz – 1.75GHz

Perfect Dish feed
using it for GOES-16 GRB (1686 MHz)
Circular Polarization.

1296MHz Septum Dish Feed
1296MHz Septum Dish Feed Dual Mode: LHCP / RHCP (Circular Polarisation)

SPECIFICATION:

* Connector: LHCP / RHCP port N-Female
* 50 ohm
* Return loss > 35dB @ 1700 MHz
* Isolation RX/TX port >20dB
* Useable F/D: 0.40 - 0.45 (Prime Focus)
* RF Power: N-connector 750W (option: 7/16DIN 1500Watts)
* Weight: CIR1700 2.4 Kg
* Download specification sheet [685 KB] in PDF

Price P/N: CIR-1700 Download actual pricelist

Shipment is to lot's of countries possible, we will be
glad to
E-mail you a quotation, or use the Quote request page.

CLX-07 Dish feed bracket for use with CIR-1700
CLX-07 Bracket
CLX-07 Bracket

CLX-07 Mounting Bracket.

Perfect solution to mount CIR-1700 in front of our RF HAMDESIGN dishes
Bracket needs a 4-leg dish feed support

CNC milled Alumimum ready to mount

Price P/N: CLX-07 Download actual pricelist

Shipment is to lot's of countries possible, we will be
glad to
E-mail you a quotation, or use the Quote request page.

CIR-2320: DUAL MODE CIRCULAR DISH FEED 2.3 - 2.4 GHz
1296MHz Septum Dish Feed
1296MHz Septum Dish Feed Dual Mode: LHCP / RHCP (Circular Polarisation)

CIR-2320: Dual Mode Circular Septum (LHCP/RHCP) dish feed 2320 MHz (2400) MHz

Specification:

* Connector: RX/TX N-Female
* 50 ohm
* Return loss >30dB @ 2320MHz
* Isolation RX/TX port >20dB
* Useable F/D: 0.40 - 0.45 (Prime Focus)
* RF Power: N-connector 500 W
* Weight: CIR2320 1.0 Kg
* Download specification sheet [685 KB] in PDF

Dual Mode Circular Dish Feed 2320MHz (Septum)
Dual Mode Circular Dish Feed 2320MHz (Septum)

Dish feed standard operation frequency is 2320MHz, at request other freq possible.

Price P/N: CIR-2320
Download actual pricelist

Shipment is to lot's of countries possible, we will be
glad to
E-mail you a quotation, or use the Quote request page.

CLX-06 Dish feed bracket for use with CIR-2320
CLX-06 Bracket
CLX-06 Bracket

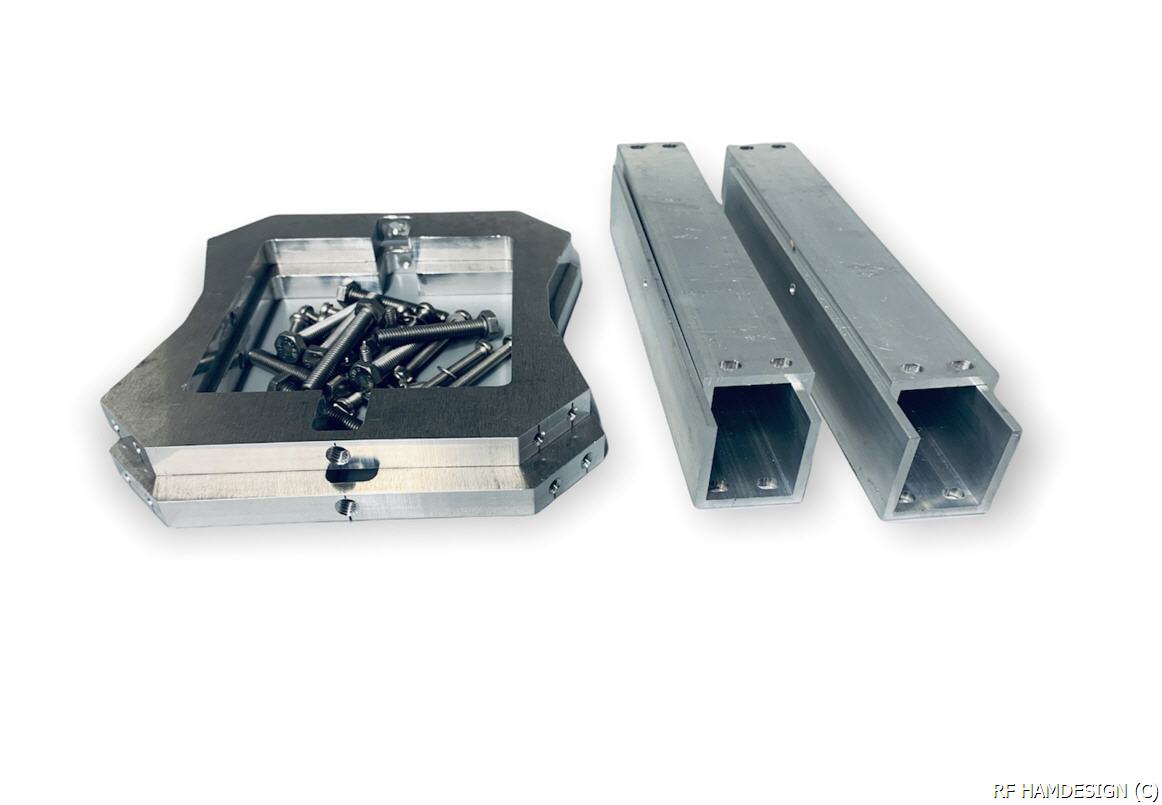

CLX-06 Mounting Bracket.

Perfect solution to mount CIR-2320 in front of our RF HAMDESIGN dishes
Bracket needs a 4-leg dish feed support

CNC milled Alumimum ready to mount

Price P/N: CLX-06 Download actual pricelist

Shipment is to lot's of countries possible, we will be
glad to
E-mail you a quotation, or use the Quote request page.

CIR-3400: DUAL MODE CIRCULAR DISH FEED 3.3 - 3.5 GHz
3400 MHz Septum Dish Feed
3400 MHz Septum Dish Feed Dual Mode: LHCP / RHCP (Circular Polarisation)

CIR-3400: Dual Mode Circular Septum (LHCP/RHCP) dish feed 3400 MHz

Specification:

* Connector: RX/TX N-Female
* 50 ohm
* Return loss >27dB @ 2320MHz
* Isolation RX/TX port >20dB
* Useable F/D: 0.40 - 0.45 (Prime Focus)
* RF Power: N-connector 500 W
* Weight: CIR3400 0,570 Kg
* Download specification sheet [685 KB] in PDF

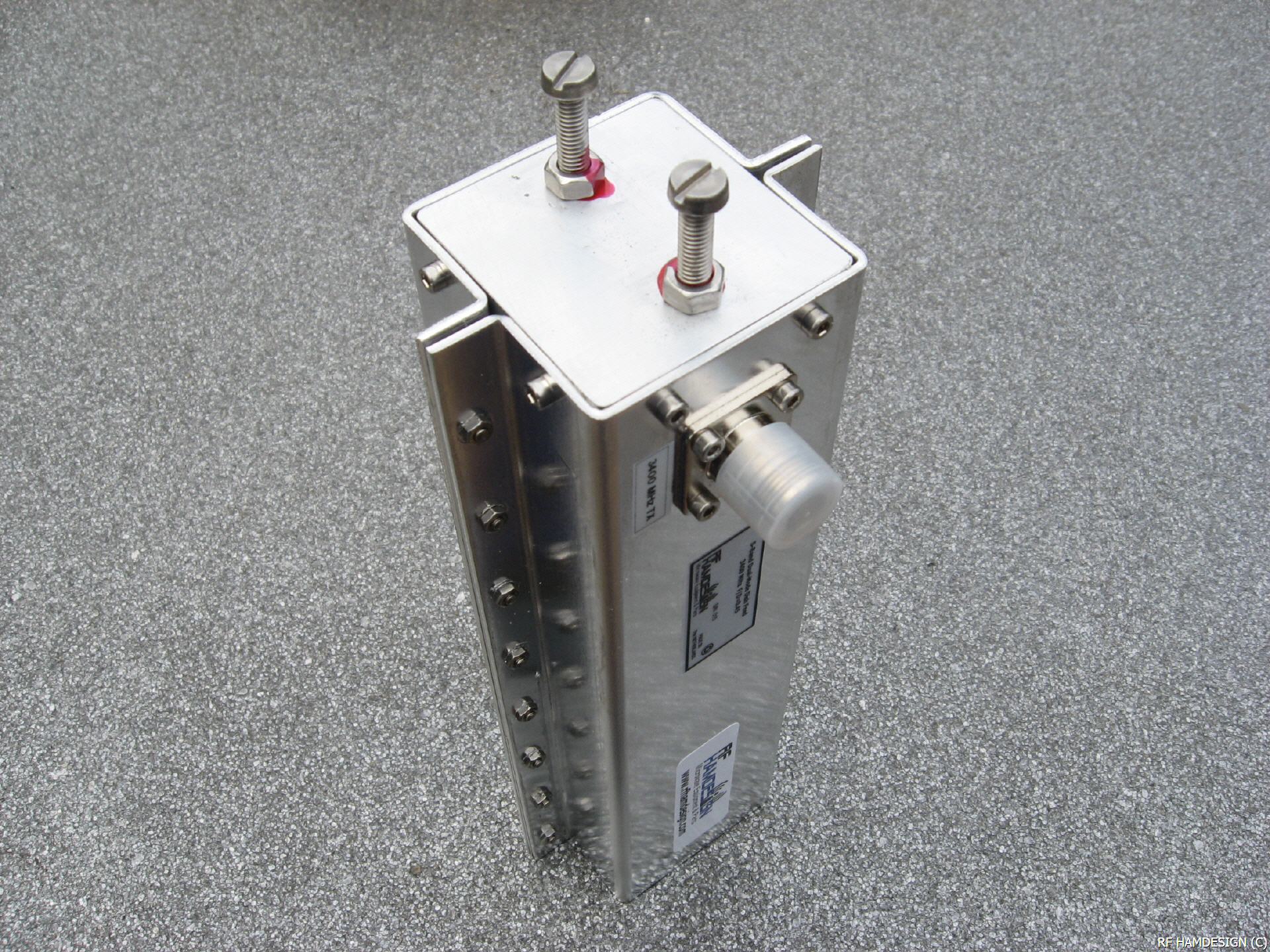

3400 Dual Mode Septum Dish Feed
3400 Dual Mode Septum Dish Feed

Dish feed standard operation frequency is 3400MHz, at request other freq possible.

Price P/N: CIR-3400
Download actual pricelist
Price Bracket P/N: CLX-08
Download actual pricelist

Shipment is to lot's of countries possible, we will be
glad to
E-mail you a quotation, or use the Quote request page.

CIR-5760: DUAL MODE CIRCULAR DISH FEED 5760 MHz (Septum Dish Feed)
CIR-5760 Septum Dish Feed
CIR-5760 Septum Dish Feed Dual Mode: LHCP / RHCP (Circular Polarisation)

CIR-5760: Dual Mode Circular Septum (LHCP/RHCP) Prime Focus dish feed 5760 MHz and adjustable scalar ring.

CIR-5760
C-Band Circular LHCP / RHCP Dish Feed
Tuned to: 5760MHz

Specification:
* Connector: LHCP / RHCP port SMA Female
* 50 ohm
* Return loss > 25dB
* Isolation LHCP/RHCP >20dB
* Usable bandwidth +/- 45MHz
* Supplied incl Measurement plot each port
* Usable F/D: 0.30 - 0.45 (supplied incl adjustable scalar ring)
* Prime Focus Dish feed

CLX-5760 Bracket + CIR-5760 Circular Dish Feed
CLX-5760 Bracket + CIR-5760 Circular Dish Feed

* RF Power: SMA 125W CW
* Weight: CIR-5760 1.04Kg
* Material: CNC Milled Aluminum
* Overall Dimensions: 136 x 69 x 49 mm
* Download Specifications PDF CIR-5760 [268 KB]

PRICE P/N: CIR-5760 Download actual pricelist

Shipment is to lot's of countries possible, we will be
glad to
E-mail you a quotation, or use the Quote request page.

CLX-5760 Dish feed bracket for use with CIR-5760
CLX-5760 Bracket
CLX-5760 Bracket

CLX-5760 Mounting Bracket.

Perfect solution to mount CIR-5760 in focus point of our prime focus dish.
Bracket needs a 4-leg dish feed support

CNC milled Alumimum ready to mount

P/N: CLX-5760 Download actual pricelist

Shipment is to lot's of countries possible, we will be
glad to
E-mail you a quotation, or use the Quote request page.

CIR-8500: DUAL MODE CIRCULAR DISH FEED 8500 MHz (Septum Dish Feed)
8500MHz Septum Dish Feed
8500MHz Septum Dish Feed Dual Mode: LHCP / RHCP (Circular Polarisation)

CIR-8500: Dual Mode Circular Septum (LHCP/RHCP) Prime Focus dish feed 8500 MHz

CIR-8500
X-Band Circular LHCP / RHCP Dish Feed
Tuneable between: 8GHz – 9GHz

Specification:

* Connector: LHCP / RHCP port SMA Female
* 50 ohm
* Return loss > 27dB @ 8 - 9 GHz
* Isolation LHCP/RHCP >20dB
* Usable bandwidth +/- 75MHz (R/L =>18dB)
* Supplied incl Measurement plot
* Useable F/D: 0.40 - 0.45 (supplied incl scalar ring)
* Prime Focus Dish feed

CLX-8500 Bracket + CIR-8500 Circular Dish Feed
CLX-8500 Bracket + CIR-8500 Circular Dish Feed

* RF Power: SMA 100W CW
* Weight: CIR8500 1.2Kg
* Material: CNC Milled Aluminum
* Overall Dimensions: 155 x 90 mm
* Download Specifications PDF [741 KB]

PRICE P/N: CIR-8500 Download actual pricelist

Shipment is to lot's of countries possible, we will be
glad to
E-mail you a quotation, or use the Quote request page.

CLX-8500 Dish feed bracket for use with CIR-8500
CLX-8500 Bracket
CLX-8500 Bracket

CLX-8500 Mounting Bracket.

Perfect solution to mount CIR-8500 in front of our RF HAMDESIGN dishes
Bracket needs a 4-leg dish feed support

CNC milled Alumimum ready to mount

P/N: CLX-8500 Download actual pricelist

Shipment is to lot's of countries possible, we will be
glad to
E-mail you a quotation, or use the Quote request page.


CIR-103: DUAL MODE CIRCULAR DISH FEED 10368 MHz (Septum Dish Feed)
10368 MHz Septum Dish Feed
10368 MHz Septum Dish Feed Dual Mode: LHCP / RHCP (Circular Polarisation)

CIR-103: Dual Mode Circular Septum (LHCP/RHCP) Prime Focus dish feed 10368 MHz

X-Band Circular LHCP / RHCP Dish Feed
Tuneable between: 9.5GHz – 11GHz

Specification:

* Connector: LHCP / RHCP port SMA Female
* 50 ohm
* Return loss > 27dB @ 9.5 - 11 GHz
* Isolation LHCP/RHCP >20dB
* Usable bandwidth +/- 75MHz (R/L =>18dB)
* Supplied incl Measurement plot
* Useable F/D: 0.40 - 0.45 (supplied incl scalar ring)
* Prime Focus Dish Feed
* RF Power: SMA 100W CW
* Weight: CIR-103 0,55 Kg
* Material: CNC Milled Aluminum
* Overall dimensions: 125 x 75 mm
* Download Specifications PDF

=============================
!!!!! PRODUCT SOLD OUT !!!!!
Email for current delivery time

=============================


PRICE P/N: CIR-103 Download actual pricelist

Shipment is to lot's of countries possible, we will be
glad to
E-mail you a quotation, or use the Quote request page.

CLX-103 Dish feed bracket for use with CIR-103
CLX-103 Bracket + CIR-103 Circular Dish Feed
CLX-103 Bracket + CIR-103 Circular Dish Feed

CLX-103 Mounting Bracket.

Perfect solution to mount CIR-103 in front of our RF HAMDESIGN dishes
Bracket needs a 4-leg dish feed support

CNC milled Alumimum ready to mount
PRICE Bracket P/N: CLX-103 Download actual pricelist

Shipment is to lot's of countries possible, we will be
glad to
E-mail you a quotation, or use the Quote request page.

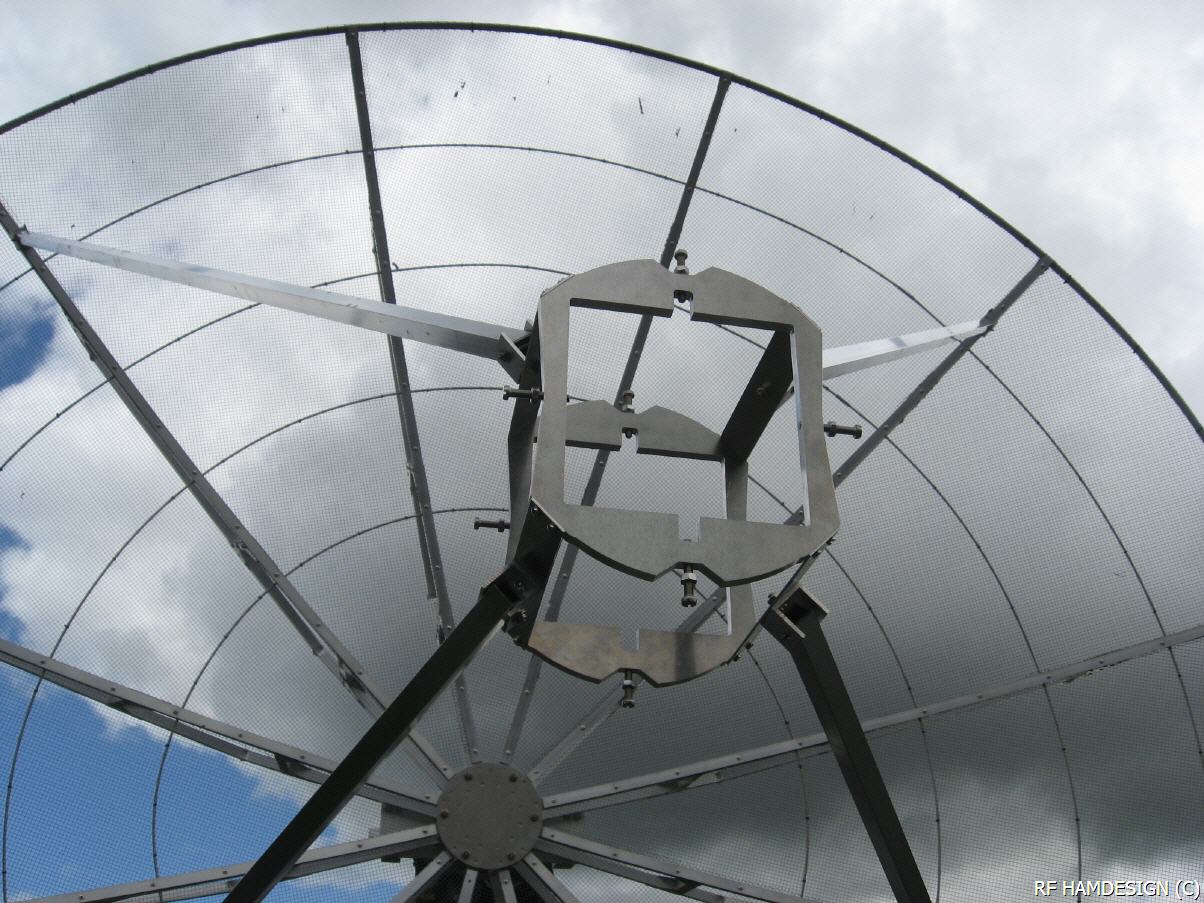

Dual Mode Dish feed Mounting Bracket.....

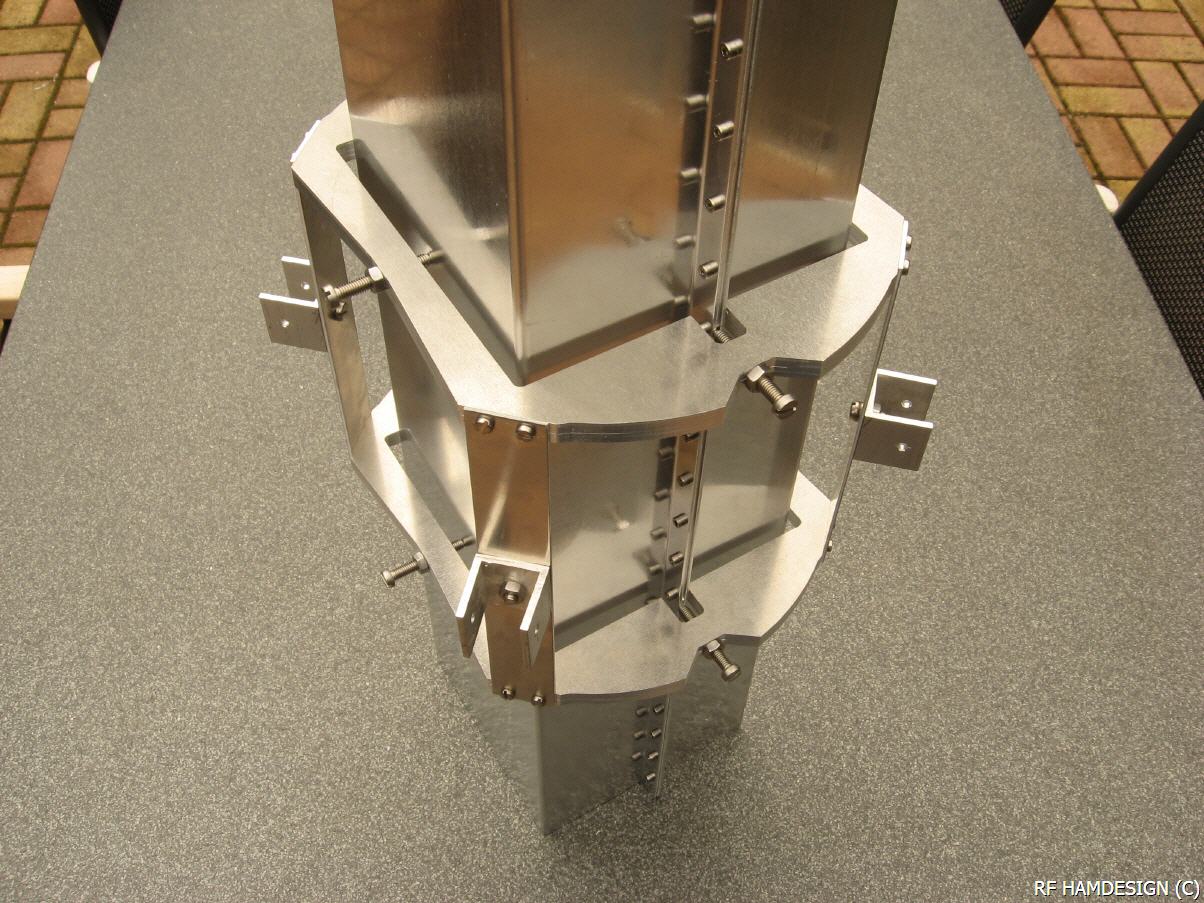

CLX-05 1296MHz Septum Dish feed clamp
CLX-05 1296MHz Septum Dish feed clamp

CNC Milled Dish feed clamp for use with a Dual Mode Dish feed

This mounting bracket is designed to use with a 4-leg dish feed support which is standard supplied with 3 or 4.5 meter RF HAMDESIGN dish
(On request we can supply a 4th leg with our dishes from 1 to 2.4Meter diameter)

Useable 4-leg dish feed support is 20*20mm square, option 15*15mm square

CIR-902, Bracket P/N: CLX-902
CIR-1296, Bracket P/N: CLX-05
CIR-1700, Bracket P/N: CLX-07
CIR-2320, Bracket P/N: CLX-06
CIR-5760, Bracket P/N: CLX-5760
CIR-3400, Bracket P/N: CLX-07
CIR-8500, Bracket P/N: CLX-8500
CIR-103, Bracket P/N: CLX-103

For Prices:
Download actual pricelist

Custom made for
N2UO dish feed, P/N: CLX-05-NUO , EUR 225
Bracket to mount round N2UO (7.25"- 196mm) dish feed
(Supplied incl all mounting hardware)

Clamp mounted in front of dish
Clamp mounted in front of dish

Total weight CLX-902: 2.1Kg / Overall Dimensions 32*32*32cm
Total weight CLX-05: 1.6 Kg / Overall Dimension: 20*24*20 cm
Total Weight CLX-06: 1.1 Kg / Overall Dimension: 21*21*17 cm
Total Weight CLX-07: 1.4 Kg / Overall Dimension: 21*21*17 cm
Total Weight CLX-08: 0.50 Kg / Overall Dimension: 20*20*15 cm
Total Weight CLX-5760: 0.65 Kg / Overall Dimension: 20*20*10 cm
Total Weight CLX-8500: 0.68 Kg / Overall Dimension: 20*20*10 cm
Total Weight CLX-103: 0.35 Kg / Overall Dimension: 16*16*6 cm
Total Weight CLX-05-NUO: 1.5 Kg / Overall Dimension: 20*26*20 cm


CLX-06/A Adaptor plate
CLX-06/A Adaptor Bracket
CLX-06/A Adaptor Bracket

The CLX-06/A Dish Feed Adaptor plate can be placed on the CLX-05 Bracket (1296MHz Septum Dish feed)
Dish feed Bracket model CLX-05 can be stay in place, remove 1296MHz Dish feed and place CLX-06/A and 2320MHz Septum dish feed.

Benefits CLX-06/A
+ Fast Dish feed change
+ Cheaper option as CLX-06 Bracket
+ Change from L-Band to S-Band in a vew minutes.

Price P/N: CLX-06/A Adaptor plate Download actual pricelist
(Supplied incl all mounting hardware)
PDF Information sheet [161 KB]

Shipment is to lot's of countries possible, we will be
glad to
E-mail you a quotation, or use the Quote request page.

Picture of CIR2320 Dish feed mounted into CLX-06 Bracket
WhatsApp:......


RF HAMDESIGN and Whatsapp:

WhatsApp: +31 650 882 889
(NO TECHNICAL SUPPORT QUESTIONS ! )

Important: before contacting us:
Only during business hours, only in english or Dutch, only for sales matters. For technical questions, technical support matters please contact us by E-Mail, see our contact RF HAMDESIGN page.

Please allow a delay of 15 minutes for the first reply.

This WhatsApp is only for TEXT / No Phone call / No Video

PRICE LIST

Select your language

Terms of Payment Payment Through PayPal Contact Terms / Disclaimer Leverings voorwaarden

(C) RF HAMDESIGN 2023
