RF HAMDESIGN - MESH DISH KIT 1 METER

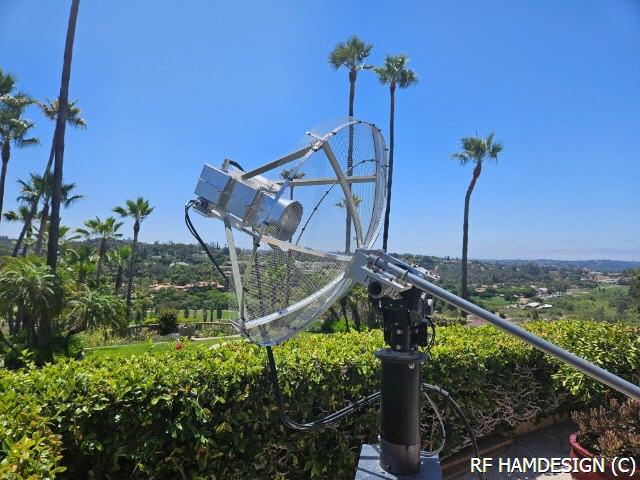

1 meter MESH DISH KIT (3.3ft)

MESH DISH KIT, all parts
MESH DISH KIT, all parts (Some parts on the picture are not part of standard delivery)

Available without dish feed, but a matching dish feed is also available
You can find our dish feeds here,
* Note: if the dish feed you are looking for is not listed on the dish feeds page, please let us know, custom made is possible !

Each RF HAMDESIGN Mesh Dish KIT is supplied including all parts:
*Manual / *Predrilled ribs / *Stainless steel bolts / nuts / washers / *Mesh / * CNC-Milled centre / *all mounting parts and 3 leg dish feed support

1M0 Dish + 2.8mm mesh
1M0 Dish + 2.8mm mesh Dish feed is as an example = not included standard delivery

General:

* All mesh dishes are standard supplied incuding an CNC Milled HUB of Aluminum and an heavy duty mast clamp, max diameter clamp 52mm.
* Delivery is including 3-leg dish feed support. (On request a 4th Dish feed support leg is available, refer price list)
* For each Mesh dish with an F/D=0.45 we do have available a dish feed and Dish feed mounting bracket.

1 Meter Mesh Dish KIT supplied including all mounting parts
Supplied including all mounting parts, but without Dish feed.

* Available F/D: 0.35 / 0.4 / 0.45 / 0.5
Always in stock for immediate shipment: F/D=0.45
* Weight: 3 kg (6mm mesh)

Standard supplied with 6mm square mesh / max freq use 6GHz
Optional: 2.8mm square mesh / max. freq use 11GHz
(Both mesh is galvanized steel)
1M0 DISH Gain and Beamwidth
Most used HAM Radio frequencies

Frequency Gain dBd -3dB angle (dgr)
1296 MHz 18.7 17.3
2320 MHz 23.6 9.7
3456 MHz 26.8 6.5
5760 MHz 30.4 3.9
1M0 DISH Gain and Beamwidth
Frequencies step by step overview

1000 MHz 15.50 20.3
2000 MHz 21.5 10.2
3000 MHz 25.0 6.7
4000 MHz 27.6 5.1
5000 MHz 29.5 4.1
6000 MHz 31 3.4
7000 MHz
Need 2.8mm mesh
32.4 2.9
8000 MHz
Need 2.8mm mesh
33.5 2.5
9000 MHz
Need 2.8mm mesh
34.6 2.2
10000 MHz
Need 2.8mm mesh
35.5 2
Available Dish feeds for use with 1M0 Mesh Dish:
You can find all our available F/D=0.45 dish feed here on this page

RF HAMDESIGN supplies up to 5-Band Linear Multi Band Dish Feeds.
LHCP / RHCP or Circular dish feeds are available as well.............

VISIT our Dish Feed Page
Download 1M0 Dish KIT Specifications sheet
Download 1M0 Dish KIT Specifications sheet

Shipment to lot's of countries possible, we will be glad to E-mail you a quotation, or use the Quote request page.

Download the price list for actual prices.
Part Number 1M0 Dish: FPD 1M0 KIT

If your delivery address is outsite the EU countries no V.A.T. applies, and no VAT applies, if you are inside the EU countries and holding a V.A.T. number.

Download
Specifications 1.0 Meter Dish Kit [641 KB] in PDF Formats.

ORDER ONLINE: ORDER FORM

Fixed Elevation Dish Mounting Bracket
BR-50
BR-50

Bracket used to mount your dish in a fixed Elevation position.

This bracket can be fixed in elevation from 0 to max 90 degree.
Supplied including mast mounting bracket
BR-50 can be used with our Mesh Dishes up to 1.9 Meter diameter.

Weight: 2.5Kg
Max. Mast mount diameter: 52mm

Price BR-50: Refer PRICE list

More pictures: Accessories part



REQUEST OR ORDER

Shipment to lot's of countries possible, we will be
glad to
E-mail you a quotation, or use the Quote request page.

All prices are inc. 21% VAT, if your delivery address is outsite the EU countries no V.A.T. applies, and no VAT applies, if you are inside the EU countries and holding a V.A.T. number.

You can find all prices in our price list, download page Price List
